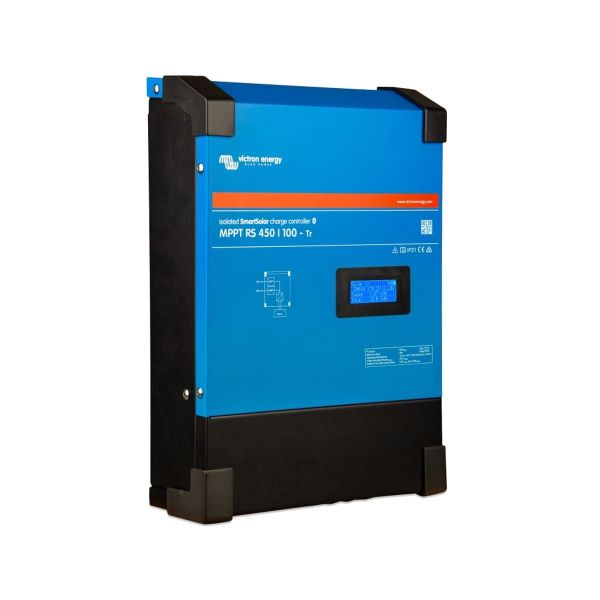

Victron SmartSolar MPPT RS 450/100-Tr

Description

SmartSolar MPPT RS 450/100-Tr & 450/200-Tr

The SmartSolar MPPT RS solar charge controllers are Victron’s solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.

Available in a 5.76kW and 11.52kW model, features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.

MPPT: Ultra Fast Maximum Power Point Tracking

The SmartSolar RS solar charge controller connects to a PV array of between 80 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A. The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.

Setup and monitor with VictronConnect

The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

Daisy Chain Additional Units

The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable. When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers. If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Display

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

I/O Connections

The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.

Specifications

ISOLATED SMARTSOLAR MPPT RS	450|100
CHARGER
Battery voltage	48 V
Rated charge current	100 A
Maximum charge power	5,8 kW at 57,6 V
Charge voltage ‘absorption’	Default setting: 57,6 V (adjustable)
Charge voltage ‘float’	Default setting: 55,2 V (adjustable)
Programmable voltage range	Minimum: 36 V Maximum: 62 V
Charge algorithm	Multi-stage adaptive (adjustable)
Battery temperature sensor	Included
Maximum efficiency	96 %
Self-consumption	15 mA
SOLAR
Maximum DC PV voltage	450 V
Start-up voltage	120 V
MPPT operating voltage range	80 – 450 V
Number of trackers	2
Max. PV operational input current	18 A per tracker
Max. PV short circuit current	20 A per tracker
Maximum PV array size per tracker	7200 Wp (450 V x 20 A)
PV Isolation fail level	100 kΩ
GENERAL
Synchronised Parallel Operation	Yes, up to 25 units with VE.Can
Programmable relay	Yes
Protection	PV reverse polarity Output short circuit Over temperature
Data communication	VE.Direct port, VE.Can port & Bluetooth
General purpose analogue/digital in port	Yes, 2x
Remote on-off	Yes
Operating temperature range	-40 to +60°C (fan assisted cooling)
Humidity (non-condensing)	max 95%
ENCLOSURE
Material & Colour	steel, blue RAL 5012
Protection category	IP21
Battery-connection	M8 bolts
Weight	7.9 kg
Dimensions (h x w x d) in mm	440 x 313 x 126
STANDARDS
Safety	EN-IEC 62109-1, EN-IEC 62109-2
