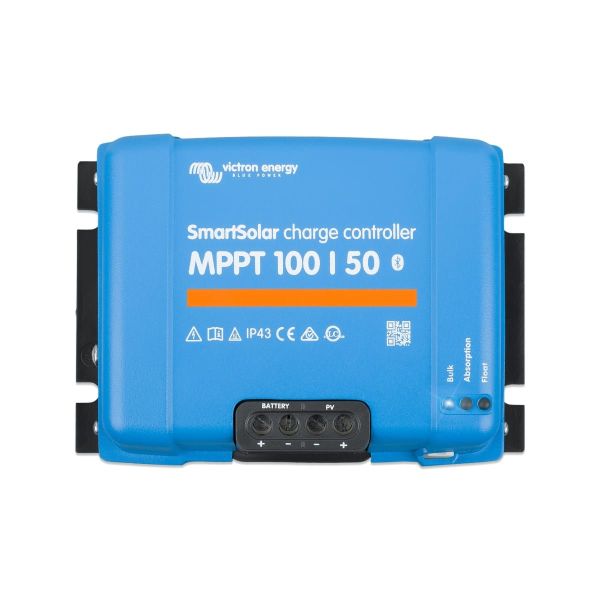

Victron SmartSolar MPPT 100/50

Description

Solar charge controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.

Specifications

SMARTSOLAR CHARGE CONTROLLER	MPPT 100/50
Battery voltage	12/24V Auto Select
Rated charge current	50A
Nominal PV power, 12V	700W
Nominal PV power, 24V	1400W
Maximum PV open circuit voltage	100V
Max. PV short circuit current	60A
Maximum efficiency	98%
Self-consumption	12V: 30 mA 24V: 20 mA
Charge voltage ‘absorption’	Default setting: 14,4V / 28,8V (adjustable)
Charge voltage ‘float’	Default setting: 13,8V / 27,6V (adjustable)
Charge algorithm	multi-stage adaptive
Temperature compensation	-16 mV / °C resp. -32 mV / °C
Protection	Battery reverse polarity (fuse, not user accessible) PV reverse polarity Output short circuit Over temperature
Operating temperature	-30 to +60°C (full rated output up to 40°C)
Humidity	95%, non-condensing
Data communication port	VE.Direct See the data communication white paper on our website
ENCLOSURE
Colour	Blue (RAL 5012)
Power terminals	16 mm² / AWG6
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	1,3 kg
Dimensions (h x w x d)	130 x 186 x 70 mm
STANDARDS
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
