R103,500.00 inc. Vat

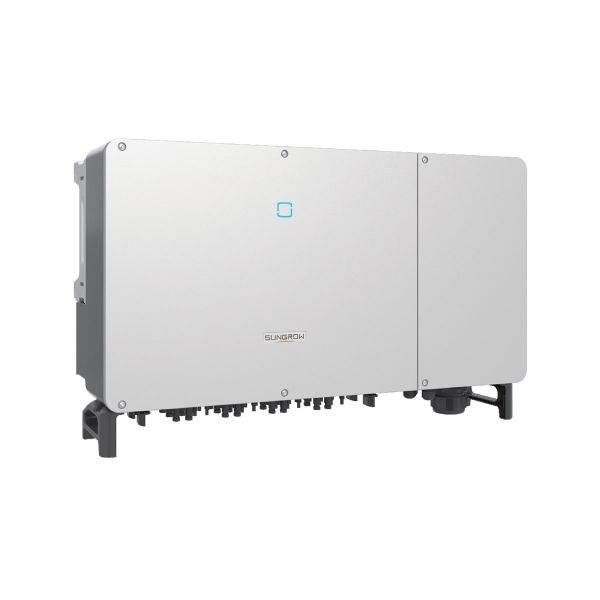

Sungrow offer a wide range of string inverters and central inverters designed for larger MW scale installations. The Sungrow 110kW PV Inverter 1000v 9x MPPT next generation inverter has an impressive list of features that cements it as one of the most advanced inverters on the market.
298 in stock
Description
High Yield
- 9 MPPTs with max. efficiency 98.7%
- Compatible with bifacial module
- Built-in PID recovery function
-
Saved Investment
- Compatible with Al and Cu AC cables
- DC 2 in 1 connection enabled
- Q at night function
Smart O&M
- Touch free commissioning and remote firmware upgrade
- Smart IV Curve diagnosis*
- Fuse free design with smart string current monitoring
Proven Safety
- IP66 and C5 anti-corrosion
- DC Type I+II SPD, AC Type II SPD
- AFCI function protects system safety
Product Specification:
| MODEL | SG110CX |
| INPUT (DC) | |
| Max. PV input voltage | 1100 V ** |
| Min. PV input voltage / Start-up input voltage | 200 V / 250 V |
| Nominal PV input voltage | 585 V |
| MPP voltage range | 200 – 1000 V |
| No. of independent MPP inputs | 9 |
| No. of PV strings per MPPT | 2 |
| Max. PV input current | 26 A * 9 |
| Max. DC short-circuit current | 40 A * 9 |
| OUTPUT (AC) | |
| AC output power | 110 kVA @ 45 ℃ / 100 kVA @ 50 ℃ |
| Max. AC output current | 158.8 A |
| Nominal AC voltage | 3 / N / PE, 400 V |
| AC voltage range | 320 – 460V |
| Nominal grid frequency / Grid frequency range | 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz |
| Harmonic (THD) | < 3 % (at nominal power) |
| Power factor at nominal power / Adjustable power factor | > 0.99 / 0.8 leading – 0.8 lagging |
| Feed-in phases / AC connection | 3 / 3-PE |
| EFFICIENCY | |
| Max. efficiency | 98.7 % |
| European efficiency | 98.5 % |
| PROTECTION AND FUNCTION | |
| DC reverse polarity protection | Yes |
| AC short-circuit protection | Yes |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Ground fault monitoring | Yes |
| DC switch | Yes |
| AC switch | Yes |
| PV string monitoring | Yes |
| PID recovery function | Yes |
| Arc fault circuit interrupter (AFCI) | Yes |
| Surge protection | DC Type I + II / AC Type II |
| GENERAL DATA | |
| Dimensions (W*H*D) | 1051*660*362.5 mm |
| Weight | 89 kg |
| Topology | Transformerless |
| Ingress protection rating | IP66 |
| Night power consumption | < 2 W |
| Operating ambient temperature range | -30 to 60 ℃ (> 50 ℃ derating) |
| Allowable relative humidity range | 0 – 100 % |
| Cooling method | Smart forced air cooling |
| Max. operating altitude | 4000 m (> 3000 m derating) |
| Display | LED, Bluetooth+APP |
| Communication | RS485 / Optional: WLAN, Ethernet |
| DC connection type | MC4 (max. 10 mm² optional) |
| AC connection type | OT / DT terminal (Max. 240 mm²) |
| Compliance | IEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4120:2018, IEC 61000-6-3, EN 50549-1/2, AS/NZS 4777.2:2015, CEI 0-16 2019, VDE 0126-1-1/A1 VFR 2019, UTE C15-712-1:2013, DEWA, UNE 206007- 1/RD 1699, UNE 217001, P.O. 12.3, Israel certificate, G99 |
| Grid Support | Q at night function, LVRT, HVRT,active & reactive power control and power ramp rate control |
